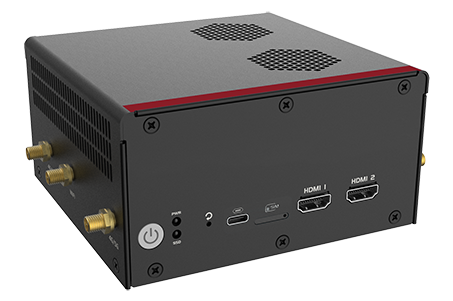

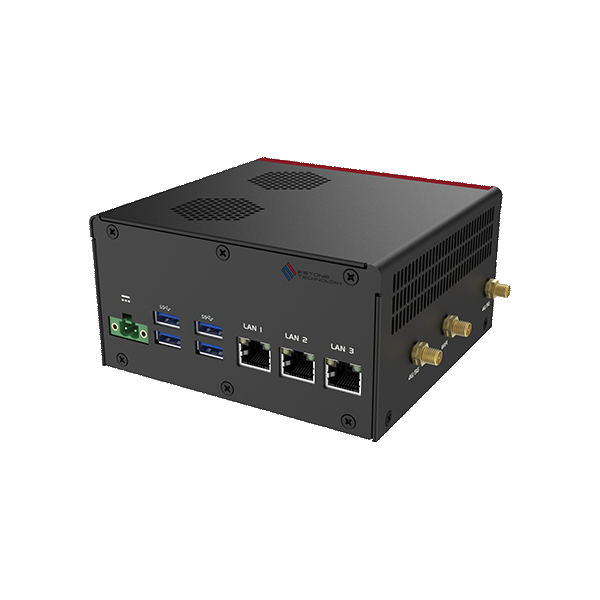

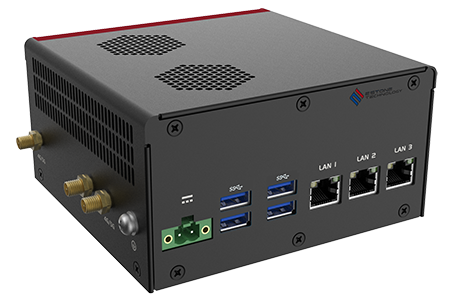

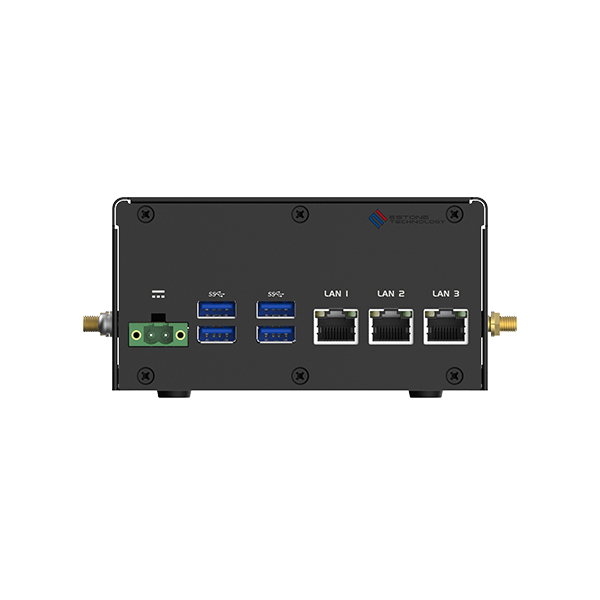

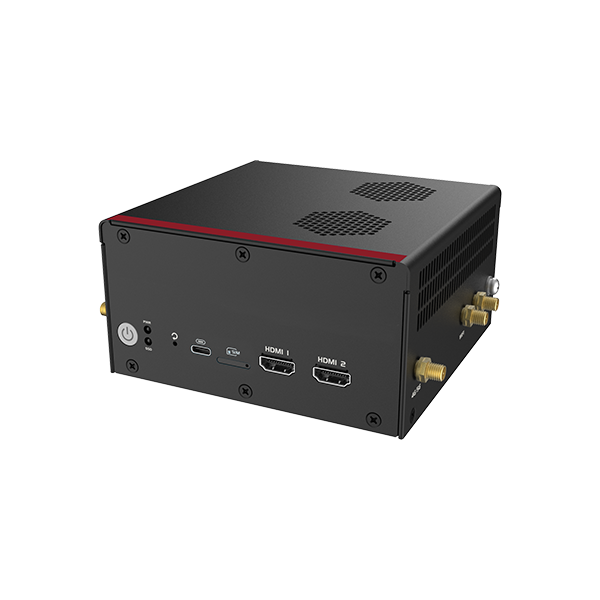

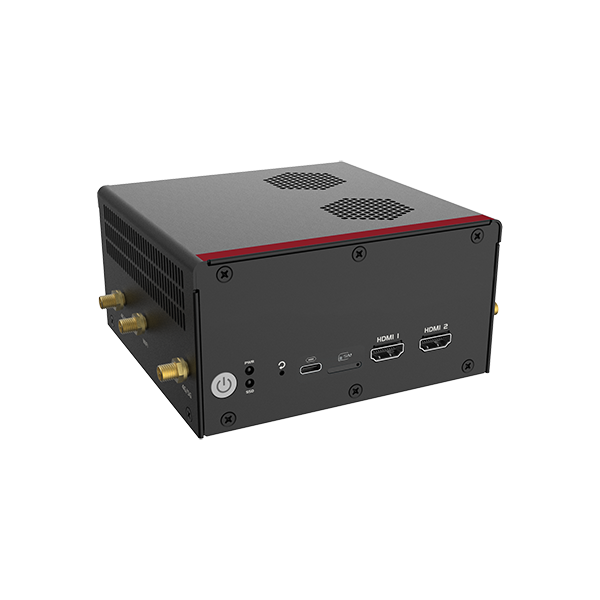

NVIDIA Jetson AGX THOR AI BOX | NPC-7512

NVIDIA Jetson AGX THOR AI BOX
Certifications products
npc_7512
NVIDIA Jetson AGX THOR AI BOX
NVIDIA Jetson AGX THOR AI BOX
NVIDIA Jetson AGX THOR AI BOX
NVIDIA Jetson AGX THOR AI BOX
NVIDIA Jetson AGX THOR AI BOX
NVIDIA Jetson AGX THOR AI BOX
arrow
arrow

Features

  • The Jetson AGX THOR module is adopted
  • Supports up to 128GB Memory and 2070TOPS
  • Supports up to 14-core Arm® Neoverse®-V3AE 64-bit
  • 1*GbE, 2*LAN (2.5G/5G/10G selectable)
  • 4 x USB3.2 Type-A, 1 x USB3.2 Type-C
  • Supports WiFi, Bluetooth, 4G/5G • Supports TPM 2.0
  • Industrial-grade equipment
  • DC 9~36V wide voltage power supply, overcurrent and overvoltage protection
Pricing Based on MOQ
delivery
in 2 ~ 4 week
DESCRIPTION
DESCRIPTION
NVIDIA Jetson AGX THOR AI BOX

Redefining the Boundaries of Robotic Intelligence

At the heart of this product lies the NVIDIA® Jetson AGX THOR module, boasting a peak performance of 2070 TOPS. It can effortlessly handle multiple HD video streams, run complex deep learning models, and perform real-time environmental perception and decision-making. With support for up to 128 GB of memory, it ensures smooth and stable operation for large-scale AI applications and massive data processing, completely eliminating performance bottlenecks and empowering robots to tackle unprecedented intelligent challenges.

Streamlined Design, Focused on Core Scenarios

This product is targeted at the field of artificial intelligence robots, but its design philosophy places greater emphasis on high integration and deployment flexibility. Through refined interface configuration, it achieves structural compactness while maintaining core computing power. It is particularly suitable for robot forms with limited space or as a pure computing unit in the main control system. This enables customers to more precisely allocate their valuable computing resources to the core chain of perception and decision-making, optimizing the overall system cost and structural design.

Refined Interface Configuration

- Network Connectivity: Equipped with 1 Gigabit RJ45 and 2 optional 10-Gigabit RJ45 ports (2.5G/5G/10G selectable) to meet high-speed data transmission requirements. - Expansion Capability: 4 USB 3.2 Type-A and 1 Type-C ports provide sufficient peripheral connection capacity. - Wireless Communication: Integrated WiFi 5/6 and 4G/5G modules ensure stable device connectivity in various environments.

Reliable Quality Assurance

Adopting industrial-grade reliability standards, it supports a wide voltage range of 9~36V for power supply, and is equipped with overvoltage and overcurrent protection mechanisms to ensure the stable operation of the equipment in complex industrial environments. The streamlined design not only reduces the complexity of the system but also enhances the overall reliability.

NVIDIA Jetson AGX THOR AI BOX
SPECIFICATIONS

System

Processor
12-core Arm® Neoverse®-V3AE 64-bit,
14-core Arm® Neoverse®-V3AE 64-bit
GPU
1536-core NVIDIA Blackwell architecture GPU with 64 fifth-gen Tensor Cores Multi-Instance GPU (MIG) with 6 TPCs,
2560-core NVIDIA Blackwell architecture GPU with 96 fifth-gen Tensor Cores Multi-Instance GPU (MIG) with 10 TPCs
NPU
1200 Sparse FP4 TFLOPs, 600 Sparse/300 Dense FP8 TFLOPs,
2070 Sparse FP4 TFLOPs, 1035 Sparse/500 Dense FP8 TFLOPs
Memory
64GB/128GB
Storage
M.2 M Key 2280 NVMe
LAN
1 x RJ45, 10/100/1000Mbps,
2 x RJ45 (2.5G/5G/10G optional)
Audio
Audio interface 1 x 3.5mm Combo Jack,
1 x 12-pin vehicle connector: 4 x DMIC, 2 x 5W AMP
Display
NVIDIA Blackwell GPU,
Output, 2 x HDMI2.1, Up to 4096 x 2160 @60Hz
USB
4 x USB3.2 Type-A,1 x USB3.2 Type-C
LED
9 x LED
(1x power supply, 1x hard disk indicator light, 7x network port light)
Button
1 x power button,
1 x Recovery button
TPM
TPM 2.0
Watchdog
255 levels of programmable seconds per minute

OS

OS Support
Ubuntu24.04 (Jetpack7.0)

Power

Power Input
9~36V DC IN

Mechanical

Dimensions
130x125x70mm
New Weight
kg

Environment

Operating Temp.
-25~60℃ (-13~140 °F) w/ 0.7m/s airflow
Storage Temp.
-40~85℃ (-40~185 °F)
Humidity
10% to 90% no condensation
Shock
With SSD solid-state drive: Operating state, 2Grs@5~500Hz,IEC 60068-2-64
Vibration
With SSD solid-state drive: working state, 15G@11ms half sine wave
EMC
CE/FCC
