Features

  • Intel® LGA1200 10th&11th Core™i9/i7/i5/i3/Pentium®/Celeron®/ Xeon Processor with W480E/H420E PCH
  • Dual 24V DC power inputs, support 350W power consumption, max up to 750W
  • Dual front removable 2.5" SSD/HDD tray for easy swap
  • Support NVIDIA 350W high performance GPU cards ,suitable for Video AI Edge computing, 3D image processing and vision application.
NPC-7914 Driver
delivery
DESCRIPTION
CONFIGURE & BUY
DESCRIPTION
Intel CPU

Rapid Processing and Inference

This platform is based on the Intel® LGA1200 socket design and is fully compatible with the 10th and 11th generation Core™ i9/i7/i5/i3, Pentium®, Celeron® and Xeon® processors. It is paired with the W480E/H420E chipset to build a high-performance computing and expansion hub. The W480E is targeted at enterprise-level workstations, offering enhanced RAID, vPro™ security management, and 2.5G Ethernet support; the H420E focuses on mainstream commercial scenarios, optimizing multi-screen output and energy efficiency performance. Together, they meet the diverse computing power demands from data centers, industrial automation to high-end desktops, while balancing performance upgrades and system stability.

Comprehensive I/O and Flexible Scalability

This AI computing device adopts a multi-interface integration design to flexibly adapt to complex hardware expansion requirements. The W480E chipset offers 2×USB3.2 Gen2 (10Gbps) and 6×USB3.2 Gen1 interfaces, supporting high-speed transmission of AI camera and sensor data. The H420E is equipped with 6×USB3.2 Gen1 interfaces and 4 expandable industrial communication ports (RS232/422/485), ensuring compatibility with both new and old devices for collaborative operation. The entire series supports mPCIe/mSATA expansion (4G module/storage) and PCIe x16 + x4 slots (GPU/FPGA acceleration), combined with dual gigabit Ethernet ports and industrial bus protocols, providing efficient data transmission and heterogeneous computing support for scenarios such as smart manufacturing and edge servers, and building a customizable AI hardware platform.

Intel® Comet Lake-S Computing System
Intel® Comet Lake-S Computing System

Strong hardware expansion capability

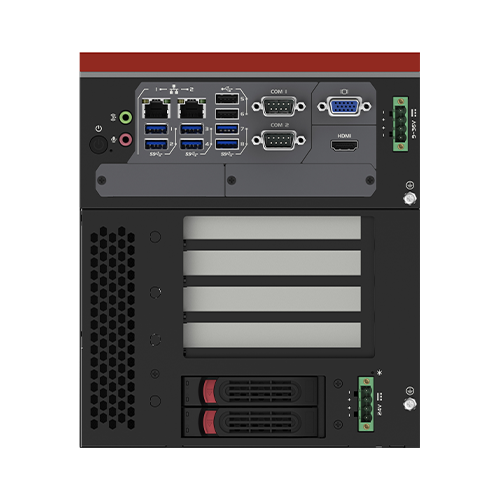

This device enhances hardware expansion capabilities with an innovative architecture. The four PCIe slots adopt a layered design strategy: the top two slots without signal are reserved for the third slot's high-performance graphics card (such as dual-slot or triple-slot cards), breaking the size limitations of traditional chassis for large graphics cards; the fourth slot provides a full PCIe x4 signal channel, compatible with expansion needs such as data acquisition cards and 10-gigabit network cards. At the bottom, two 2.5-inch hard drive quick-release brackets are integrated, supporting tool-free hot-swapping. Combined with the front-end high-speed I/O and back-end expansion modules, it doubles the efficiency of storage expansion and hardware maintenance, providing a "compute-storage-expansion" three-in-one elastic deployment solution for high-load scenarios such as deep learning training and real-time data analysis.

Excellent cooling design

This product innovatively adopts a zoned intelligent cooling architecture. The CPU area achieves fanless and silent cooling through an all-aluminum heat spreader and multi-directional heat dissipation fins, ensuring a noise-free experience in office and lightweight computing scenarios. Meanwhile, the independent graphics card installation position is equipped with a dual ball bearing turbo fan that can dynamically adjust the speed according to the GPU load, precisely controlling the temperature during high-load tasks such as graphic rendering and AI training. The dual-zone collaborative design not only maintains the low-noise operation of the entire machine but also provides active cooling protection for high-performance hardware, perfectly balancing the requirements for silence and computing power release, making it suitable for diversified professional scenarios such as design workstations and edge servers.

Intel® Comet Lake-S Computing System
Intel® Comet Lake-S Computing System

Robust and Reliable

It's been tested according to IEC 60068-2-64 and IEC 60068-2-27 standards, including random vibration tests and mechanical impact tests. These tests show that the device can stand up to vibrations and shocks really well. Also, it has CE and FCC Class A certification, which means it performs great in terms of electromagnetic compatibility and safety. All this makes it perfect for industrial automation and tough environments.

SPECIFICATIONS

System

Processor
LGA1200 Gen 10th&11th Intel Core i3/ i5/ i7/i9 Pentium®/Celeron®/Xeon® Processor
Chipset
W480E/H420E
Memory
2x DDR4 2933/2666 MHz SO-DIMM, up to 64GB (support ECC)
BIOS
AMI UEFI BIOS
OS
Windows10, Linux，Ubuntu20.04

I/O interface

USB
W480E:2xUSB3.2(Gen2), 6xUSB3.2(Gen1), 2xUSB2.0(Internal), 1x USB dongle(Internal) H420E:6xUSB3.2(Gen1), 2xUSB2.0,1xUSB2.0(Internal)
Serial
2x RS232/422/485, 4x RS232 (optional)
LED
1xPower, 1xHDD

Expansion

PCI/PCIe/ Mini-PCIe
W480E: 1x mPCIe (via Nano-SIM, support 4G module), 1x mPCIe/mSATA
H420E: 1x mPCIe (via Nano-SIM, support 4G module), 1 x mSATA
Expansion layer:1PCIex16+1PCIex4

Display

Graphics
Intel®UHD Graphics 630/610
Interface
1xVGA, up to 1920*1200@60Hz
1xHDMI, up to 4096*2160@24Hz

Storage

Storage Device
2x2.5" swappable HDD/SSD tray, W480E support SATA RAID 0/1
1xmSATA

Audio

Audio IC
Realtek ALC897
Interface
1xMic-in, 1xLine-out

Ethernet

LAN IC
1xI219LM, 1x I210AT
Interface
2xRJ45

Power

Power Input
Dual 24V DC-in
Interface
4-Pole Phoenix DC plug in

Others

Watchdog Timer
1 to 255 sec./min. per step
TPM
optional

Mechanical

Dimensions
385(L)×192(W)×223mm(H)（15.1”x7.5”x8.8”）
Weight
N.W. 8.5KG
Mounting
Desk mounting

Environment

Temperature
65W: -10℃~50℃(-14℉~122℉)With airflow, 35W:-10℃~60℃(-14℉~140℉)With airflow
Storage Temp.
-40 ~ 85 °C (-40℉ ~ 185℉)
Humidity
95% @ 40 °C (non-condensing)
Shock
With SSD: 10G, IEC 60068-2-27, half-sine wave, 11 ms duration
Vibration
With SSD:1Grms, IEC 60068-2-64, random，5~500Hz，1 hr/axis
