Industrial Panel PC | PUC-CXX65 Series

Certifications products
puc
Estone Industrial Panel PC PUC Series
Estone Industrial Panel PC PUC Series
Estone Industrial Panel PC PUC Series
arrow
arrow

Features

  • Fanless Industrial Panel PC
  • Support Intel® Celeron® J6412
  • 1 x DDR4-3200MHz SO-DIMM slot, up to 32GB
  • 1 x Front USB 2.0
  • Supports 12 -24V DC power input
  • Fanless design, front panel IP65 compliant
  • Supports panel mounted and VESA mounted
PUC-CXX65 User Manual PUC-CXX65 Driver
$916.00
delivery
in 2 ~ 4 week
DESCRIPTION
CONFIGURE & BUY
DESCRIPTION
Intel CPU J6412

Rapid Processing and Inference

The PUC series uses Intel® Celeron® Processor J6412. The J6412 processor is a quad-core system-on-chip (SoC) designed by Intel, targeting embedded and industrial applications. It is part of Intel's Elkhart Lake family, built on a 10nm process, and features a balance of performance and power efficiency. The processor integrates Intel UHD Graphics, supporting multiple display outputs and 4K resolution, making it suitable for applications requiring visual computing. It also includes support for DDR4 memory, PCIe 3.0, USB 3.1, and SATA interfaces, offering flexibility for various connectivity needs. With its low power consumption and robust performance, the J6412 is ideal for use in IoT devices, edge computing, and other embedded systems.

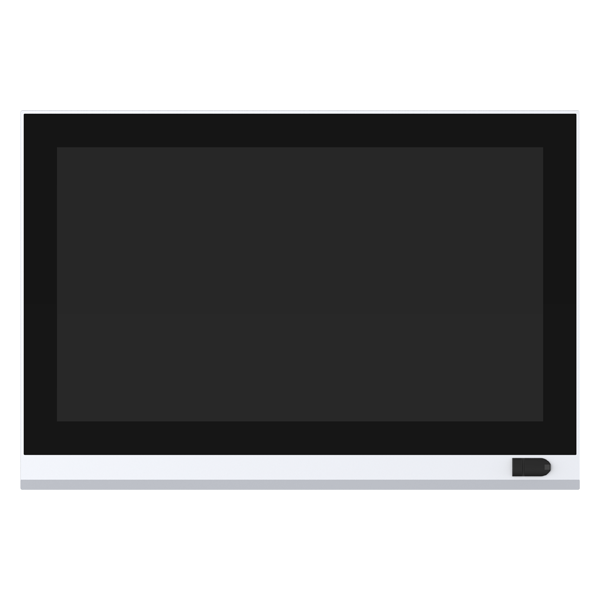

Design for Tough Industrial Environments

Engineered with a modular capacitive touchscreen and fanless operation, this Industrial Panel PC rugged reliability (IP65-rated waterproof/dustproof ) for mission-critical applications in smart manufacturing, renewable energy, and environmental sensing sectors.

Estone Industrial Panel PC PUC Series
Estone Industrial Panel PC PUC Series

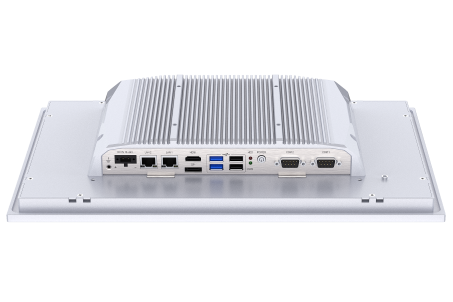

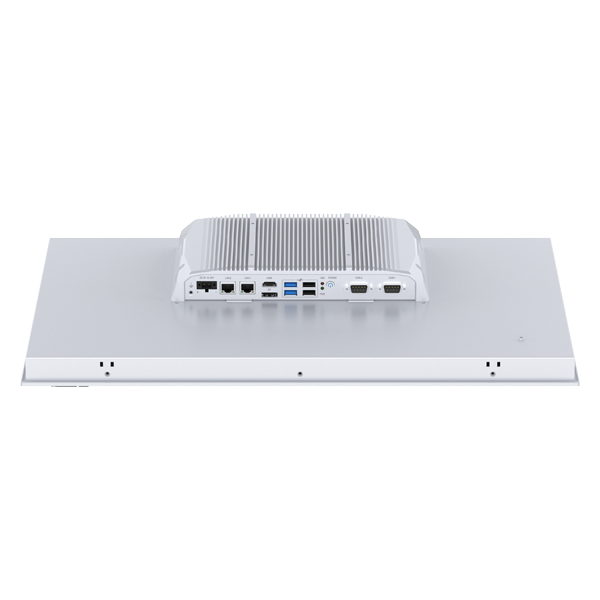

Comprehensive I/O and Flexible Scalability

The device supports the installation of M.2 SATA SSDs and optional M.2 WiFi or Mini PCIe 3G/4G communication modules, and the standard configuration includes 2 USB 3.2 ports, 3 USB 2.0 ports, 2 RS-232 serial ports, and 2 Gigabit Ethernet ports to meet the diverse hardware configuration needs of complex application scenarios.

Robust and Reliable

It's been tested according to IEC 60068-2-64 and IEC 60068-2-27 standards, including random vibration tests and mechanical impact tests. These tests show that the device can stand up to vibrations and shocks really well. Also, it has CE and FCC Class A certification, which means it performs great in terms of electromagnetic compatibility and safety. All this makes it perfect for industrial automation and tough environments. dustproof/water resistant IP65 front panel.

Estone Industrial Panel PC PUC Series
SPECIFICATIONS

SYSTEM

CPU
Intel® Celeron® J6412 processor
Memory
1 x DDR4-3200MHz SO-DIMM slot, up to 32GB
Storage
1 x M.2-2242 M Key SSD slot (SATA)
Display
1 x HDMI 1.4b,
1 x DP 1.2 (only for non-clip cables)
USB
2 x USB3.2Gen2,
3 x USB2.0
COM
2 x RS-232 (COM1, RS-485 optional)
LAN
2 x Realtek 1000Mbps RJ-45 Ethernet interface
Expansion
1 x M.2 E Key 2230 (for WiFi & Bluetooth),
1 x Mini PCIe (for 3G/4G)
TPM
TPM 2.0
Watchdog
1~255 levels programmable

LCD

Display Type
15.6"/18.5"/21.5"
Max. Resolution
1920x1080
Luminance
250/350nits
Contrast Ration
1000:1
Viewing Angle
89 (L), 89 (R), 89 (T), 89 (B)
Backlight Lifetime
50000hours

Touch Screen

Touch Type
Multi-touch projected capacitive
Light Transmission
≥ 87%

OS

OS Support
Windows10, Windows11, Linux

Power

Input Voltage
DC 12~24V
Power Consumption
60W

Mechanical

Dimensions
Make reference to specific products
Cutout Dimensions
Make reference to specific products
Net Weight
Make reference to specific products

Environment

Operating Temperature
0~50℃ (32~122℉)
Storage Temperature
-20~60℃ (-4~140℉)
Relative Humidity
5%~95% @40℃ (non-condensing)
IP Rating
Front panel IP65
Vibration
Operating random vibration test 5~500Hz, 1.5Grms @with SSD, follows IEC 60068-2-64
Shock
Operating 10G peak acceleration (11ms duration), follows IEC 60068-2-27
EMC
CE/FCC Class A
CONFIGURATION
icon BASE CONFIGURATION:
$916.00
per unit
in 2 ~ 4 week
cart ADD TO CART
Quantity:
get personalized offer
open this product and find more reference
Display Type
15.6" FHD, 1920x1080, 350nits
0.00
15.6" FHD, 1920x1080, 350nits
0.00
hide
15.6" FHD, 1920x1080, 350nits
18.5" FHD, 1920x1080, 350nits
+ $110.00
hide
18.5" FHD, 1920x1080, 350nits
21.5" FHD, 1920x1080, 350nits
+ $209.00
hide
21.5" FHD, 1920x1080, 350nits
Memory
SO-DIMM DDR4 memory 8GB Normal temperature
0.00
SO-DIMM DDR4 memory 8GB Normal temperature
0.00
hide
SO-DIMM DDR4 memory 8GB Normal temperature
SO-DIMM DDR4 memory 16GB Normal temperature
+ $40.00
hide
SO-DIMM DDR4 memory 16GB Normal temperature
Storage
M.2 M Key 2280 SATA SSD 128GB Normal temperature
0.00
M.2 M Key 2280 SATA SSD 128GB Normal temperature
0.00
hide
M.2 M Key 2280 SATA SSD 128GB Normal temperature
M.2 M Key 2280 SATA SSD 256GB Normal temperature
+ $35.00
hide
M.2 M Key 2280 SATA SSD 256GB Normal temperature
M.2 M Key 2280 SATA SSD 512GB Normal temperature
+ $78.00
hide
M.2 M Key 2280 SATA SSD 512GB Normal temperature
M.2 M Key 2280 SATA SSD 1TB Normal temperature
+ $165.00
hide
M.2 M Key 2280 SATA SSD 1TB Normal temperature
M.2 M Key 2280 SATA SSD 2TB Normal temperature
+ $220.00
hide
M.2 M Key 2280 SATA SSD 2TB Normal temperature
WiFi & Bluetooth
None
0.00
None
0.00
hide
M.2 Key E for WiFi&Bluetooth
+ $25.00
hide
M.2 Key E for WiFi&Bluetooth
4G LTE
None
0.00
None
0.00
hide
MINI PCIE 4G & Antenna
+ $55.00
hide
Estone POE Card
MINI PCIE 4G & Antenna
