The PNC-CXX75 series panel PC is equipped with the Intel Alder Lake-N high-performance processor. Users can choose the panel PC with the N97 or N305 CPU model according to their own needs. The i3-N305 has 8 cores and 8 threads, with a base frequency of 1.80 GHz and a maximum turbo frequency of up to 3.80 GHz. When dealing with complex tasks, the processor can automatically turbo to a higher frequency to provide stronger computing power.

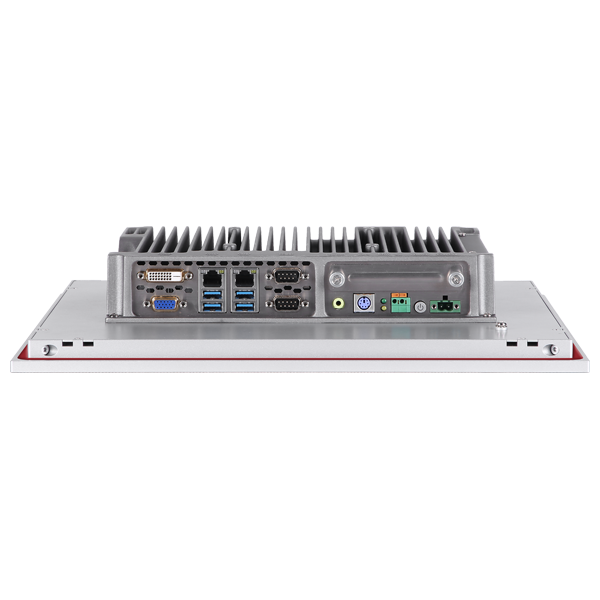

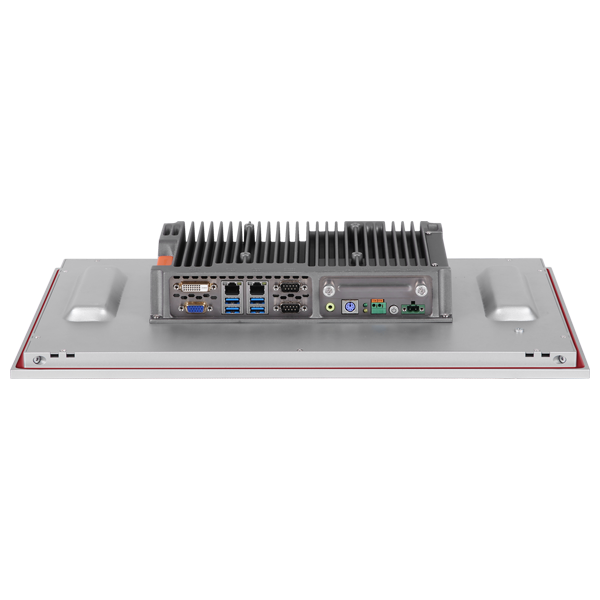

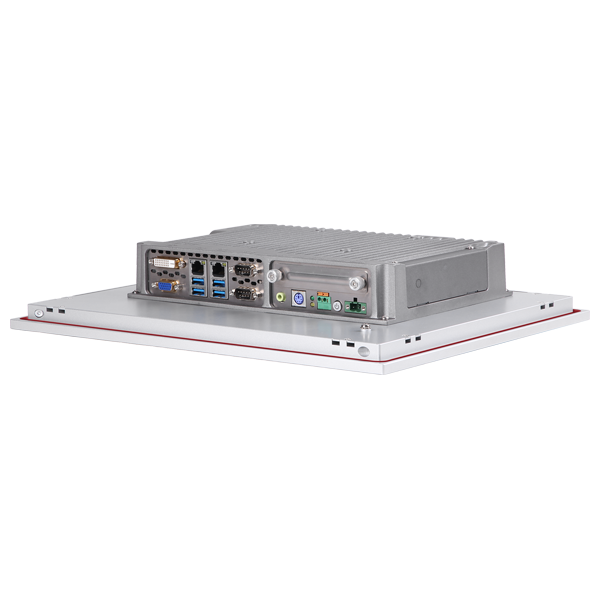

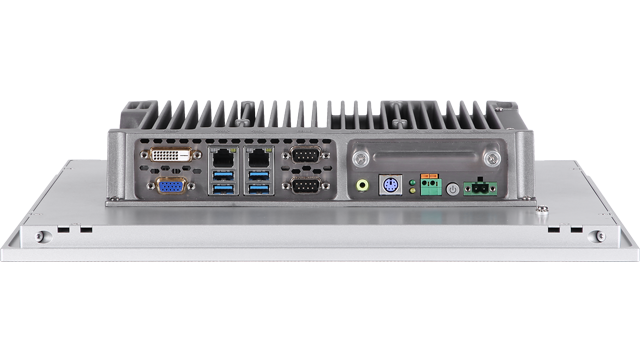

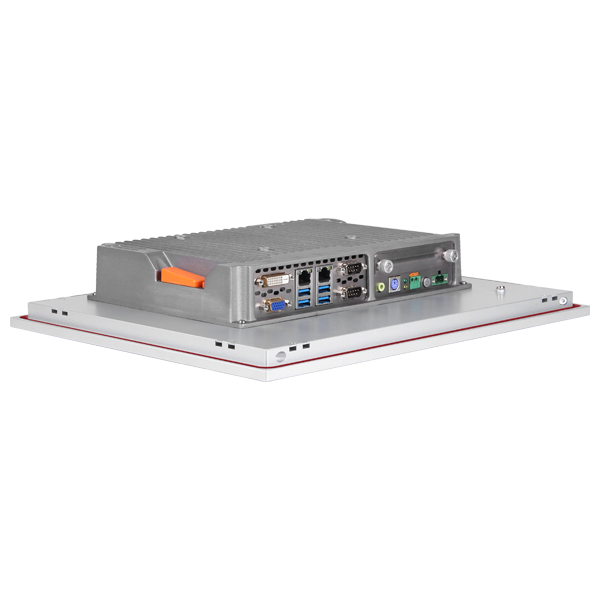

The PNC-CXX75 series panel PC has DVI-D and VGA interfaces and supports multi-display. Two gigabit network ports, 2x USB2.0 and 2x USB3.2 Gen1 Type A provide users with multiple data transfer interfaces. The two serial ports are set to RS232 mode by default. They can also be modified to RS485 mode by adjusting the jump caps on the motherboard. A PS/2 interface is also reserved to prepare for the use of the PS2 keyboard and mouse.
The PNC-CXX75 series panel PC supports Arm mounting, Wall mounting and Panel mounting, it delivers adaptable deployment capabilities across diverse intelligent manufacturing environments. When selecting Panel mounting, please check the Datasheet data of the product model and confirm the cut out size.Cut out a section from the panel that corresponds to the rear panel dimensions of the flat panel PC. Take care that the panel section that is cut out is smaller than the overall size of the metal frame that surrounds the flat panel PC but just large enough for the rear panel of the flat panel PC to fit through.

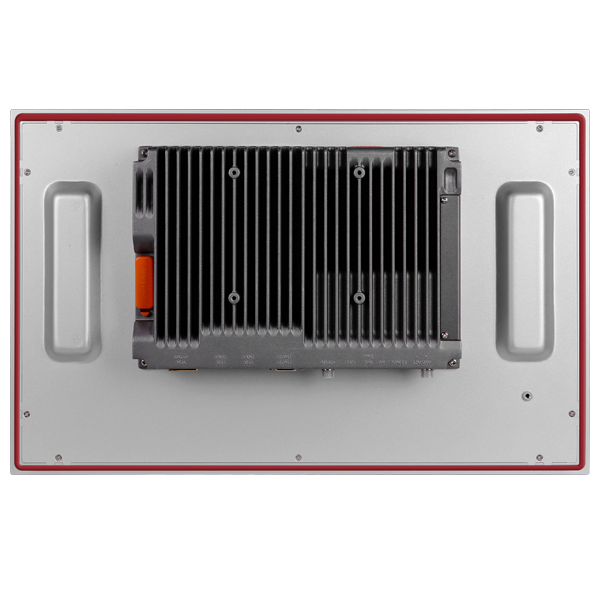

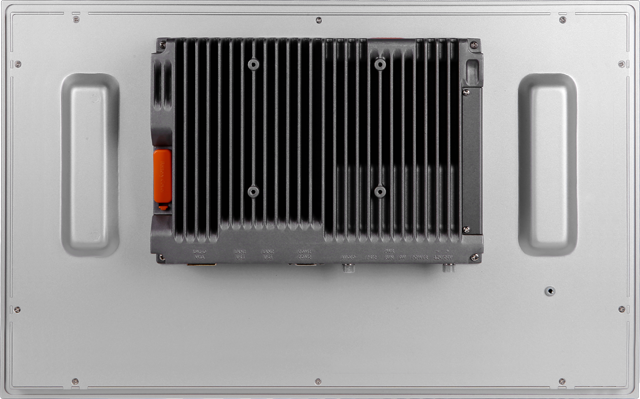

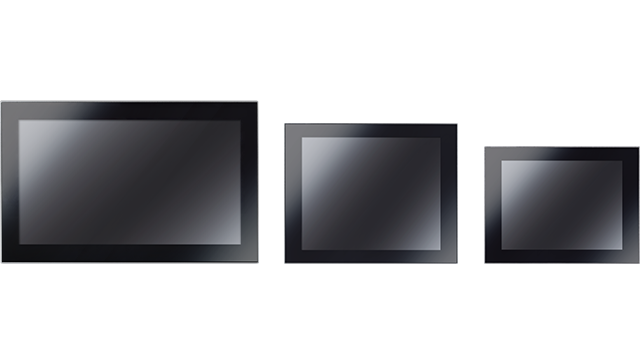

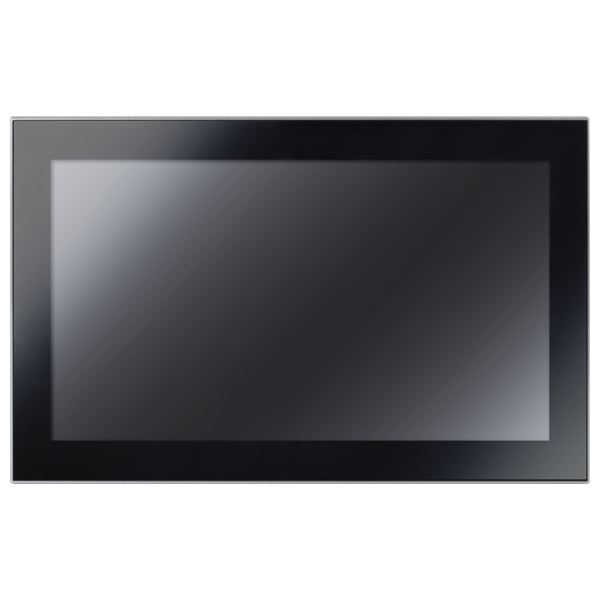

This is a modular fanless industrial tablet computer based on the design of a projected capacitive touch operation panel. The front side is front panel LCD touch screen monitor surrounded by an aluminum magnesium alloy die-cast frame. It features a smooth multi-touch experience and a fashionable appearance design. The display screens are available in 10.4, 12.1, 15, 15.6, 17, 18.5, 19, and 21.5 inches.
It's been tested according to IEC 60068-2-64 and IEC 60068-2-27 standards, including random vibration tests and mechanical impact tests. These tests show that the device can stand up to vibrations and shocks really well. Also, it has CE and FCC Class A certification, which means it performs great in terms of electromagnetic compatibility and safety. All this makes it perfect for industrial automation and tough environments. dustproof/water resistant IP65 front panel.
