Industrial Panel PC | PNC-CXX25 Series

Certifications products
pnc_cxx25
arrow
arrow

Features

  • 15.6"/21.5"
  • Intel® Processor N97/Core i3/i5/i7...
  • 1xDDR4-3200MHz SO-DIMM slot,up to 32GB
  • Supports NFC
  • Fanless design, front panel IP65 compliant
  • Supports panel mounted and VESA mounted
Pricing Based on MOQ
delivery
in stock
DESCRIPTION
DESCRIPTION
Estone Panel PC, Intel 12th CPU

Rapid Processing and Inference

The PNC-CXX25 series offers a variety of CPU to choose from, including Intel Process N97, Intel Core i5-7200U, i7-7500U, i3-1215U, i5-1235U, and i7-1255U. Users can choose the corresponding CPU according to their own needs.

Comprehensive I/O interface

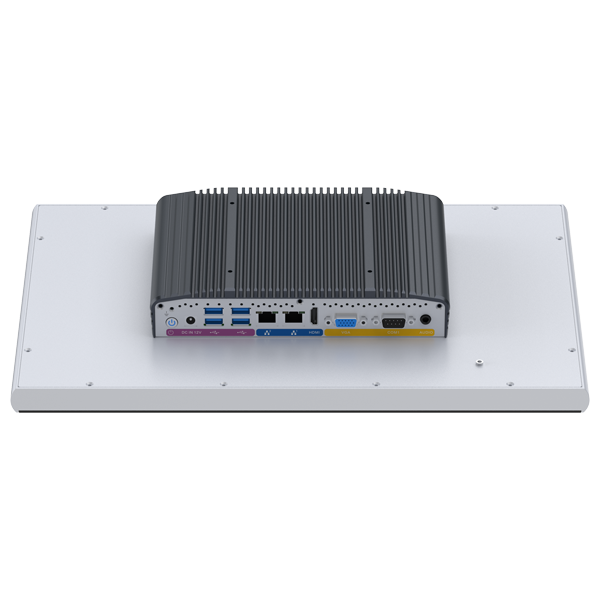

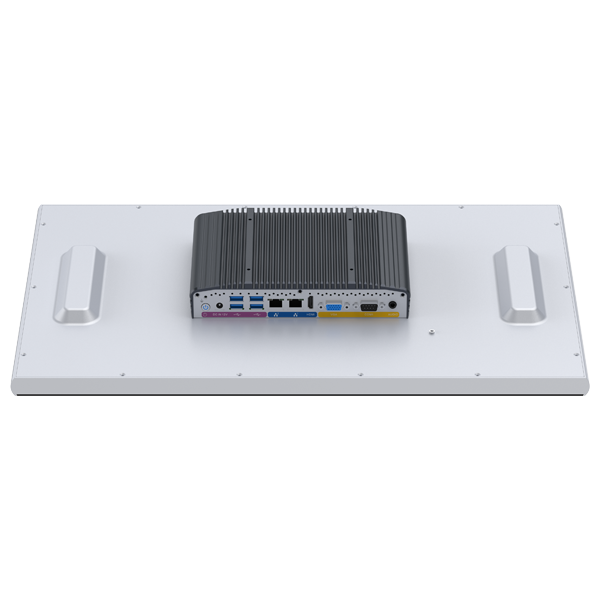

The PNC-CXX25 series panel PC features HDMI and VGA interfaces and supports multiple displays. Two Gigabit Ethernet ports and 4xUSB3.2 Gen1 Type A provide users with multiple data transmission interfaces. The four serial ports are set to RS232 mode by default. COM1 can be modified to RS485 mode in BIOS. On the front of the PNC-CXX25 product, NFC functionality is also supported.

Estone Panel PC, IP65

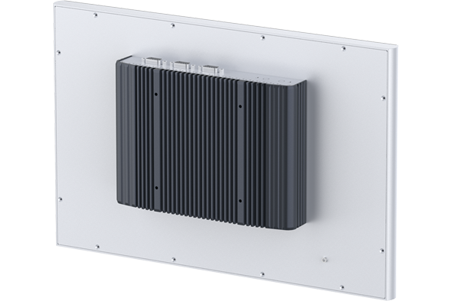

Estone Panle PC, PPC-CXX27 IO

Supports multiple installation methods

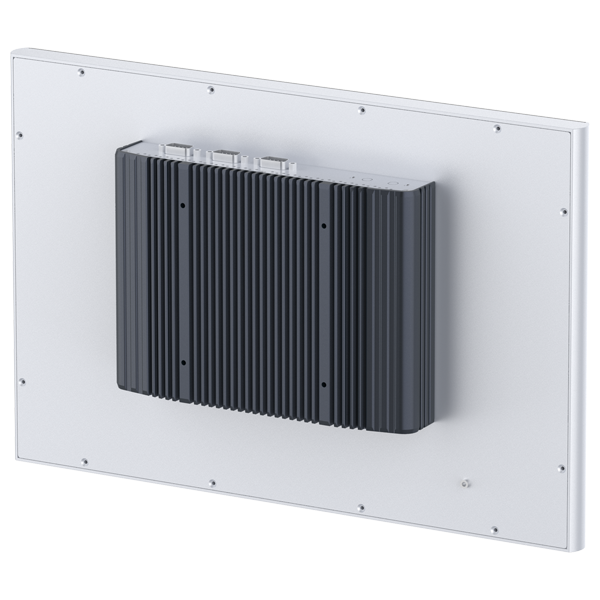

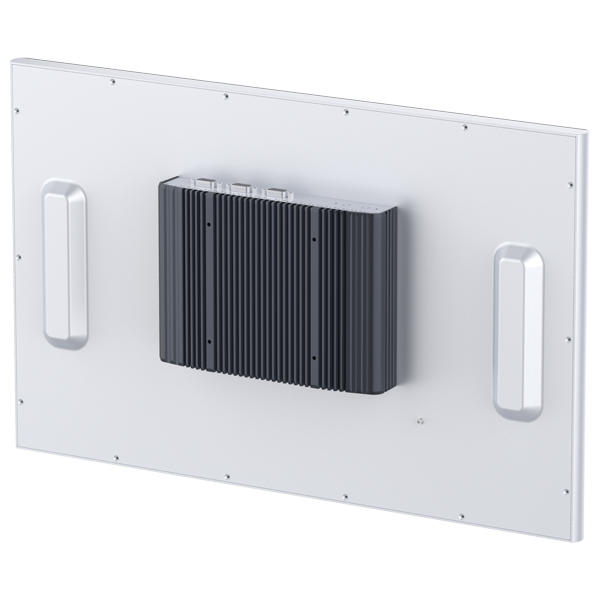

The PNC-CXX25 series panel PC supports Arm mounting and Panel mounting, it delivers adaptable deployment capabilities across diverse intelligent manufacturing environments. When selecting Panel mounting, please check the Datasheet data of the product model and confirm the cut out size.Cut out a section from the panel that corresponds to the rear panel dimensions of the flat panel PC. Take care that the panel section that is cut out is smaller than the overall size of the metal frame that surrounds the flat panel PC but just large enough for the rear panel of the flat panel PC to fit through.

High-quality touch screen and multiple size options

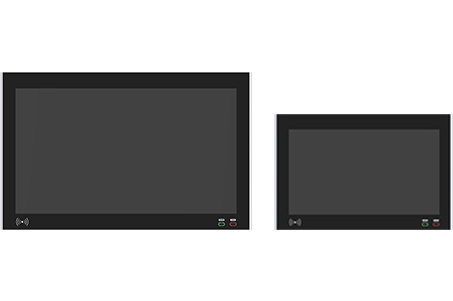

This is a modular fanless industrial tablet computer based on the design of a projected capacitive touch operation panel. The front side is front panel LCD touch screen monitor surrounded by an aluminum magnesium alloy die-cast frame. It features a smooth multi-touch experience and a fashionable appearance design. The display screens are available in 10.4, 12.1, 15, 15.6, 17, 18.5, 19, and 21.5 inches.

Estone panel PC, Modular design
Estone Panle PC

Robust and Reliable

It's been tested according to IEC 60068-2-64 and IEC 60068-2-27 standards, including random vibration tests and mechanical impact tests. These tests show that the device can stand up to vibrations and shocks really well. Also, it has CE and FCC Class A certification, which means it performs great in terms of electromagnetic compatibility and safety. All this makes it perfect for industrial automation and tough environments. dustproof/water resistant IP65 front panel.

SPECIFICATIONS

SYSTEM

CPU

Intel Processor N97 / Intel Core i5-7200U / i7-7500U / i3-1215U / i5-1235U / i7-1255U
Memory
1 x DDR4-3200MHz SO-DIMM slot, up to 32GB
Storage
1 x M.2-2242/2280 M Key (SATA/NVMe)
Display
1 x HDMI,
1 x VGA
USB
4 x USB3.0
COM
4 x RS-232(COM1, RS-485 Optional)
LAN
2 x Gbe(RJ45), Realtek8111H controller
Expansion
1 x Mini PCIe slot for 4G,
1 x M.2 E key for WiFi
TPM
TPM 2.0
Watchdog
1~255 levels programmable
NFC
Supports NFC frequency of 13.56MHz

LCD

Display Type
15.6", 21.5"
Max. Resolution
1920x1080
Luminance
250nits
Contrast Ration
800:1/1000:1

Touch Screen

Touch Type
Multi-touch projected capacitive
Light Transmission
≥ 87%
Controller Interface
USB2.0

OS

OS Support
Windows10, Windows11, Linux

Power

Input Voltage
DC 12V-5A (N97, 7200U, 7500U CPU),
DC 12V-7A (12th CPU)
Power Consumption
<60Watt (N97, 7200U, 7500U CPU),
<84Watt (12th CPU)

Mechanical

Dimensions
15.6" 406.5x265.0x60.0mm (16.0x10.4x2.4in), 21.5" 545.5x340.0x60.0mm (21.5x13.4x2.4in)
VESA
100x100mm (3.9x3.9in)
Net Weight
15.6" 4.59kg (10.12lb),
21.5" 6.85kg (15.10lb)

Environment

Operating Temperature
0~50℃ (32~122℉)
Storage Temperature
-20~60℃ (-4~140℉)
Relative Humidity
5%~95% @40° (non-condensing)
IP Rating
Front panel IP65
Vibration
SSD applied:1.5Grms, IEC 60068-2-64, random, 5~500Hz, 1 hr/axis
Shock
SSD applied:10G, IEC 60068-2-27, Half sine wave, lasting 11ms
EMC
CE/FCC
