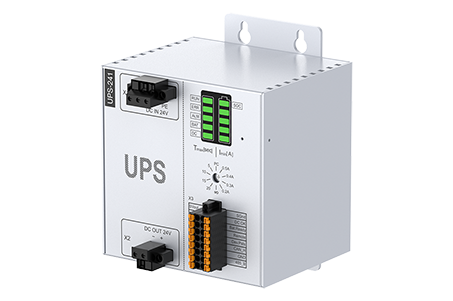

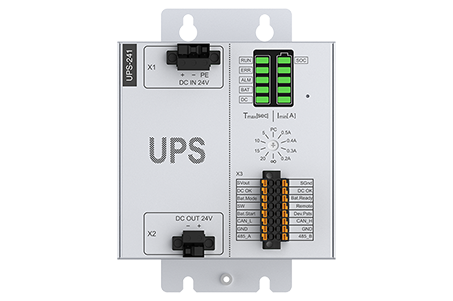

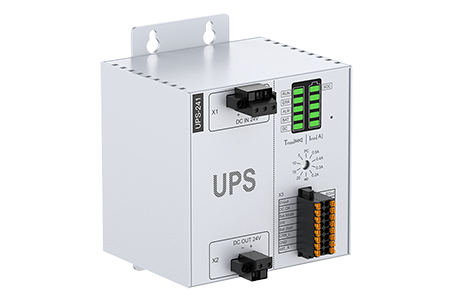

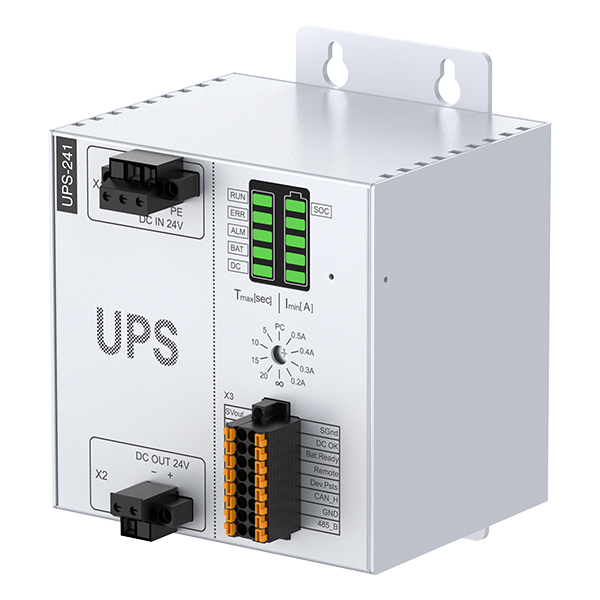

Automation Controller | UPS-241

Certifications products
ups_241
arrow
arrow

Features

  • Built in Super Capacitor
  • Support RS485, CAN2.0B
  • Support IO State feedback
  • DC24V input, overvoltage and reverse polarity protection
  • Wall mounted or DIN Rail mounted installation(Optional)
  • Support -20~60℃ wide temperature working environment
UPS-241 Datasheet UPS-241 User Manual
Pricing Based on MOQ
delivery
in 2 ~ 4 week
DESCRIPTION
CONFIGURE & BUY
DESCRIPTION
Estone Industrial Computer, Intel CPU N97

Power Failure Protection, Guardian of Data & Systems

The UPS-241 is an intelligent backup power solution designed for demanding industrial environments. Its core mission is to seamlessly switch and continuously provide stable 24V power to your critical powered equipment(such as PLCs, HMIs, servo drives, instruments, etc.) during unexpected external power failures. Crucially, it simultaneously delivers precise power status signals and provides a vital backup time window. This ensures your equipment has sufficient time to safely save critical process data and execute orderly shutdown procedures, effectively preventing risks of data loss, system crashes, or hardware damage due to unexpected power loss, minimizing losses from unplanned downtime.

Professional, Reliable, Superior Performance

The UPS-241 integrates industrial-grade protective components and advanced power management chips, utilizing high-performance supercapacitors as its energy storage core. This combination delivers significant advantages: compact size for easy integration into space-limited industrial control cabinets; exceptional reliability resistant to frequent charge/discharge cycles and harsh conditions; extremely low output ripple ensuring stable operation of powered equipment, superior anti-interference capability for consistent performance in complex electromagnetic environments. The supercapacitor solution also offers ultra-long service life (far exceeding traditional batteries), significantly reducing long-term maintenance costs.

Estone Industrial Computer APC-5712
Estone Industrial Computer APC-5712

Rich Interfaces, Controllable Status

Beyond robust power protection, the UPS-241 features abundant l/O interfaces and natively supports standard Modbus RTU and CAN 2.0B communication protocols. This enables seamless integration into your existing industrial control networks. You can monitor its status in real-time (e.g., energy storage level, input/output voltage/current), remotely configure parameters, and precisely trigger protection logic for powered equipment. Its backup time suits most industrial equipment (e.g., 110s at 24W load, 20s at 120W load) combined with rapid recharge capability (50s to full capacity), giving you confidence in backup duration to handle emergencies effectively. The substantial internal 2520Ws supercapacitor capacity provides a solid energy foundation.

Robust and Reliable

It's been tested according to IEC 60068-2-64 and IEC 60068-2-27 standards, including random vibration tests and mechanical impact tests. These tests show that the device can stand up to vibrations and shocks really well. Also, it has CE and FCC Class A certification, which means it performs great in terms of electromagnetic compatibility and safety. All this makes it perfect for industrial automation and tough environments.

Estone Authentication icon
SPECIFICATIONS

DC input

Input voltage
24VDC -15% / +20%
Max Current
12A
Input protection
Overvoltage and reverse polarity protection

DC output

Discharge mode
24V DC
Max Current
6A
Output protection
Short-circuit and overcurrent protection

Communications

RS485
1 x RS485 Modbus RTU, Max. 115.2Kbit/s
CAN2.0B
1 x CAN BUS 2.0B, Max. 1Mbit/s

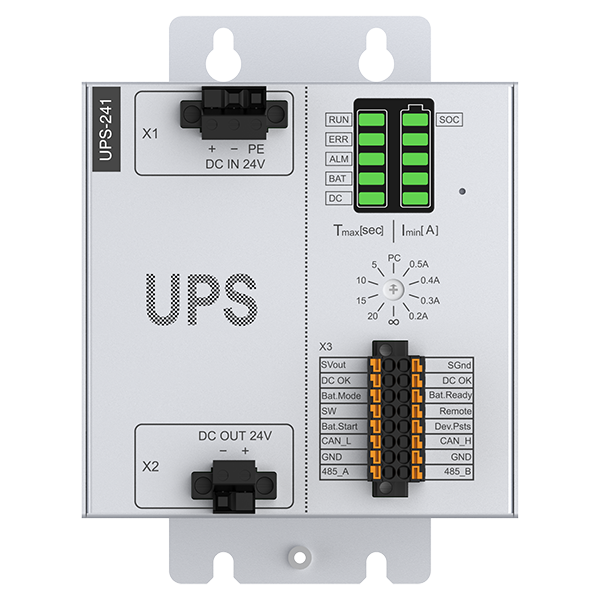

IO interfaces

LED
5 x LEDs, RUN(green), ERR(red), ALM(orange), BAT(green), DC(green)
1 x SOC
Rotating code
Mode selection
DC OK
DC power supply status, relay normally open output
Bat.Mode
Battery powered mode, NPN output
Bat.Ready
Battery fully charged state, NPN type output
SW
Output signal(active low)for system power off/on control
Remote
Remote power on/off output, NPN type output
Bat.Start
Forced battery output, NPN type input
Dev.Psts
Working status of power receiving equipment, NPN input

Super Capacitor

Capacitor
4 x 200F-2400Ws
Charge time
50s
Discharge time
40s/60W or 20s/120W

Mechanical

Dimensions
100x100x80mm (3.9x3.9x3.1in)
Net Weight
0.85kg (1.88lb)
Structure
Wall-mounted or DIN-Rail fixing style

Environment

Work Temperature
-20~60℃ (-4~140℉)
Storage Temperature
-40~80℃ (-40~176℉)
Relative Humidity
5~95%(Non-condensing)
EMC
CE/FCC Class A
