Automation Computer | APC-5712

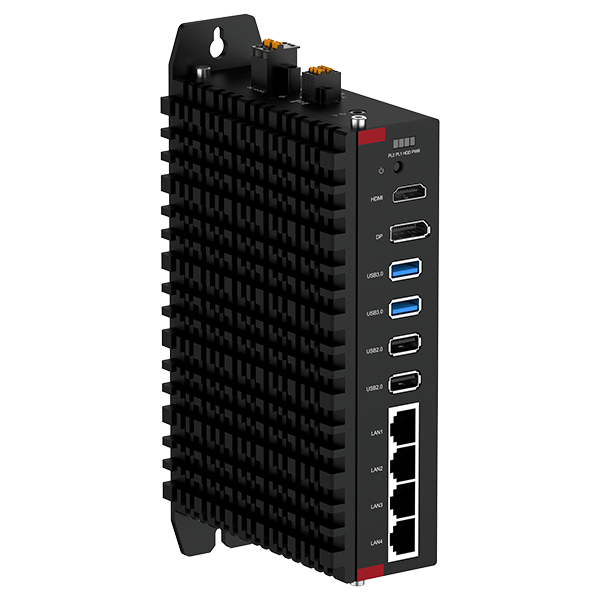

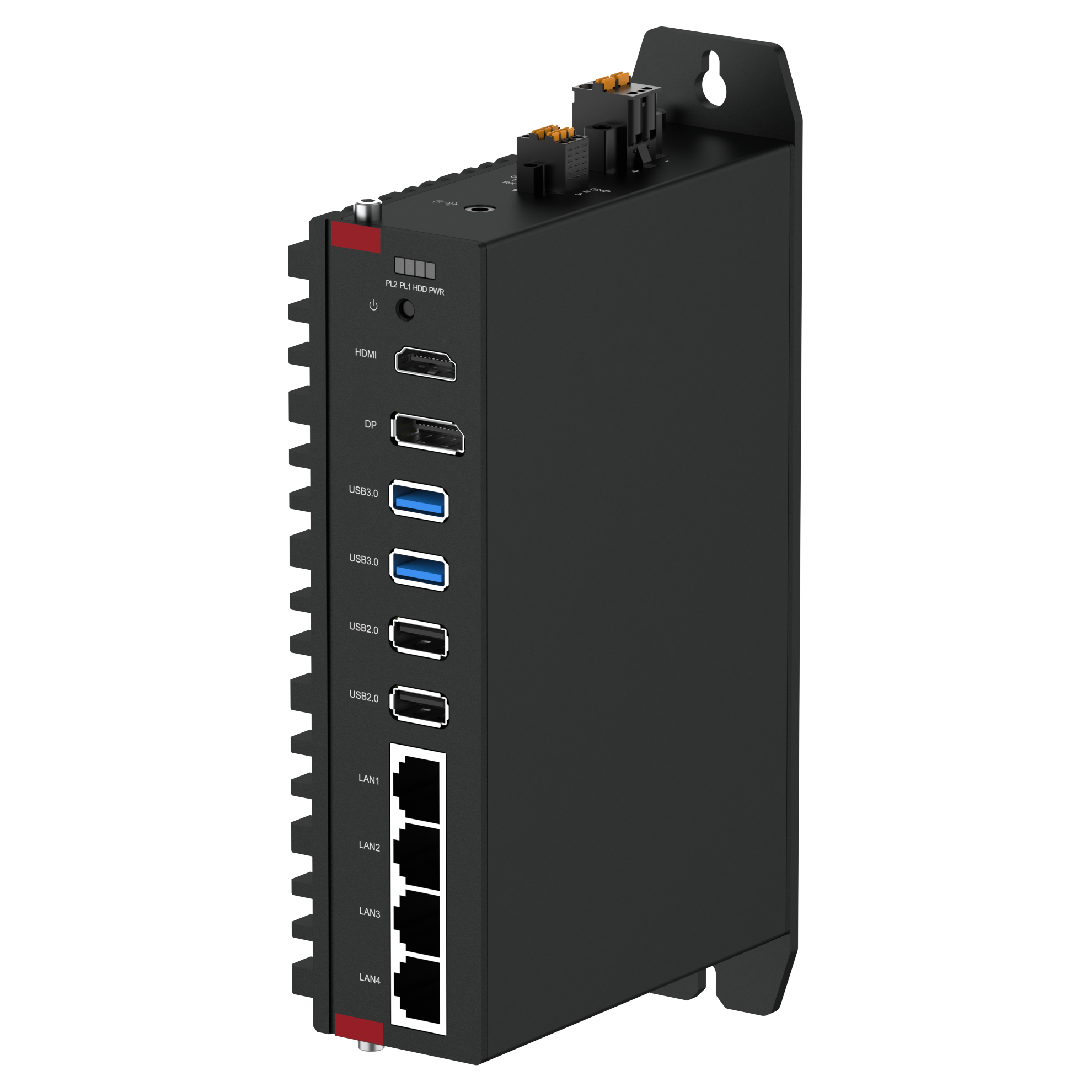

Estone Industrial Computer APC-5712
Certifications products
apc_5712
Estone Industrial Computer APC-5712
Estone Industrial Computer APC-5712
arrow
arrow

Features

  • 4 x Intel GbE LAN controller
  • 2 x USB3.0, 2 x USB2.0
  • 1 x RS232, 1 x RS485
  • 1 x Mini PCIe expansion slot, support WiFi, 3G/4G modules
  • 2 x Programmable LEDs
  • Support wall-mounted or DIN-Rail fixing style
APC-5712 Quick Guide APC-5712 Datasheet APC-5712 User Manual APC-5712 Driver
Pricing Based on MOQ
delivery
in 2 ~ 4 week
DESCRIPTION
CONFIGURE & BUY
DESCRIPTION

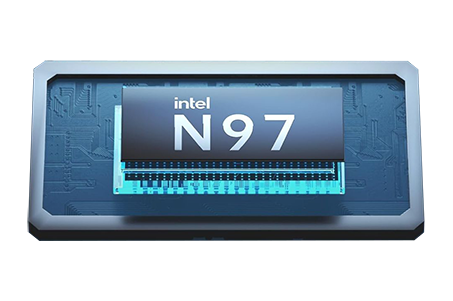

Estone Industrial Computer, Intel CPU N97

Fanless Quad-Core CPU for Industrial Edge Systems

Intel® Processor N97 is an industrial-grade quad-core, quad-thread CPU built on Intel's Gracemont E-core architecture (Intel 7 process). With a 2.0GHz base frequency (up to 3.6GHz boost), 6MB L3 cache, and a 12W TDP, it delivers optimized thermal efficiency for fanless designs. Engineered specifically for reliability in rugged edge and embedded applications, this processor balances performance with low power consumption, ideal for compact industrial systems requiring silent, maintenance-free operation in demanding environments.

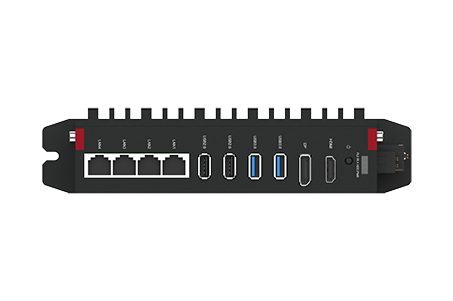

Robust Industrial Design

The APC-5712 is a rugged, fanless Automation PC designed for demanding industrial environments. Its compact size (170mm x 112mm x 48mm) and flexible wall/DIN-Rail mounting enable deployment in space-limited enclosures, with operation from -20℃ to 60℃. Ideal for industrial automation, machine vision, edge computing, and IoT gateways, its fanless construction ensures high reliability with minimal maintenance, while 12V~24V DC input tolerates industrial power fluctuation.

Estone Industrial Computer APC-5712
Estone Industrial Computer APC-5712

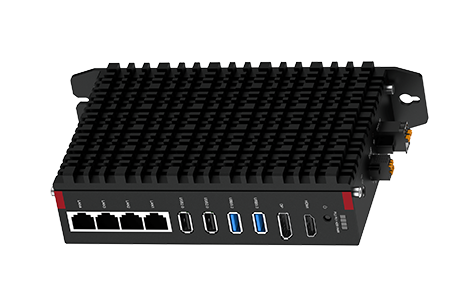

Rich Interfaces & Connectivity

The unit delivers comprehensive connectivity: Four network ports support complex topologies, equipment integration, and gateway functionality. Two USB3.0 ports enable high-speed connection to cameras/scanners, while two USB2.0 ports handle peripherals. A dedicated Mini PCIe slot expands communication capabilities with 3G/4G modules. HDMI and DP output driver local displays/HMIs, an audio interface support basic voice function, and programmable LEDs provide visual status/alarm indication for rapid diagnostics.

Robust and Reliable

It's been tested according to IEC 60068-2-64 and IEC 60068-2-27 standards, including random vibration tests and mechanical impact tests. These tests show that the device can stand up to vibrations and shocks really well. Also, it has CE and FCC Class A certification, which means it performs great in terms of electromagnetic compatibility and safety. All this makes it perfect for industrial automation and tough environments.

Estone Authentication icon
SPECIFICATIONS

SYSTEM

CPU
Intel® N97, 4 cores, 6MB Intel Smart Cache
Memory
1 x SO-DIMM, DDR4 3200MHz(Up to 32GB)
Storage
1 x M.2 M Key 2242 SATA SSD
Display
1 x DP, Support to 4096x2160 @60Hz
1 x HDMI, Support to 3840x2160 @30Hz
USB
2 x USB3.0, 2 x USB2.0
COM
1 x RS232(COM1), 1 x RS485(COM2)
LAN
4 x Intel i210-AT GbE LAN
Audio
1 x Mic in/line out, OMTP
(ALC897,3.5mm Audio port)
Expansion
1 x Full-size Mini PCIe slot with SIM card holder
LED
2 x Programmable
Watchdog
1~255 levels programmable

OS

OS Support
Windows 10, Windows11, Ubuntu

Power

Input Voltage
DC 12-24V, overcurrent, overvoltage and
polarity inverse protection
Power Consumption
Max. 90W

Mechanical

Dimensions
170x112x48mm (6.7x4.4x1.9in)
Net Weight
1.25kg (2.8lb)

Environment

Operating Temperature
-20~60℃ (-4~140℉)with air flow(SSD)
Storage Temperature
-40~80℃ (-40~176℉)with air flow(SSD)
Relative Humidity
5%~95% (non-condensing)
Vibration
5~500Hz, 1.5Grms@with SSD, Follow
IEC60068-2-64
Shock
20G peak acceleration(11ms duration) with SSD, Follow IEC60068-2-27
EMC
CE/FCC
CONFIGURATION
icon BASE CONFIGURATION:
Pricing Based on MOQ
in 2 ~ 4 week
cart ADD TO CART
Quantity:
get personalized offer
open this product and find more reference
Memory
SO-DIMM DDR4 memory 8GB Normal temperature
0.00
SO-DIMM DDR4 memory 8GB Normal temperature
0.00
hide
SO-DIMM DDR4 memory 8GB Normal temperature
View details
SO-DIMM DDR4 memory 16GB Normal temperature
+ $25.00
hide
SO-DIMM DDR4 memory 16GB Normal temperature
View details
Storage
M.2 M-Key 2242 SSD 128GB
0.00
hide
ALT
M.2 M-Key 2242 SSD 128GB
View details
M.2 M-Key 2242 SSD 256GB
+ $15.00
hide
ALT
M.2 M-Key 2242 SSD 256GB
View details
M.2 M-Key 2242 SSD 512GB
+ $50.00
hide
ALT
M.2 M-Key 2242 SSD 512GB
View details
M.2 M-Key 2242 SSD 1TB
+ $100.00
hide
ALT
M.2 M-Key 2242 SSD 1TB
View details
WiFi/4G
None-Selected
0.00
None-Selected
0.00
hide
None-Selected
View details
Mini PCIe WiFi Intel 7260
+ $40.00
hide
Mini PCIe WiFi Intel 7260
View details
Mini PCIe 4G EC20
+ $60.00
hide
Mini PCIe 4G EC20
View details
Mini PCIe 4G EG25
+ $80.00
hide
Mini PCIe 4G EG25
View details
Mini PCIe 4G EC25
+ $60.00
hide
Mini PCIe 4G EC25
View details
