Highlights

The HMI-70 is a robust and versatile Human-Machine Interface powered by a Quad-core Cortex-A55 processor running Android 14 or Linux. Designed for demanding applications, it features a 7-inch capacitive multi-touch IPS display with 1024 x 600 resolution, supporting wet and glove touch modes. The display offers an optional upgrade to 10-inch or 15-inch sizes for flexible deployment needs. This IP67-rated panel is built to endure harsh environments with wide operating temperatures and resistance to water and dust. With advanced connectivity options, including dual-band Wi-Fi, Bluetooth 5.0, RS232/485, Zigbee, and RFID, it ensures seamless integration into IoT ecosystems. The HMI-70 supports AWS cloud services, providing seamless remote monitoring, OTA updates, and intuitive control through a dedicated mobile app. With optional programmable buttons and an open-frame structure, it offers unmatched adaptability for industrial automation, smart home systems, IoT deployments, and food safety applications. Certified to FCC, CE, and RoHS standards, this device guarantees compliance and reliability for global markets.

Features

  • 7" Touchscreen LCD with 1024 x 600 Resolution (Optional: 10" or 15" LCD)
  • Available as a Standalone Panel or with an Open-Frame Structure
  • High-Performance Quad-Core ARM Processor
  • Supports Android 14 or Linux Operating Systems
  • Versatile I/O Options: USB, RS232/485, and LAN Connectivity
  • Advanced RF Options: Wi-Fi, Bluetooth, ZigBee, and RFID
  • IP67 Water & Dust Protection
  • Wide Temperature Range: 0°C to 50°C (Optional: -20°C to 60°C)
  • Seamless Integration with Estone IoT MDM Software
HMI-70 Datasheet
Pricing Based on MOQ
delivery
in 2 ~ 4 week
DESCRIPTION
DESCRIPTION
7″ Industrial Control Panel | HMI-70

Powerful Processing for Seamless IoT Integration

The HMI-70 Industrial Control Panel is equipped with a Quad-core Cortex-A55 processor running up to 2.0GHz, offering exceptional performance for industrial control, IoT deployments, and automation solutions. Its advanced processing power ensures smooth operation for complex applications, while support for Android 14 or Linux OS enables flexible and seamless integration. Whether powering smart home systems, industrial automation, or specialized use cases like RVs, boats, or golf carts, the HMI-70 adapts effortlessly to meet diverse operational demands.

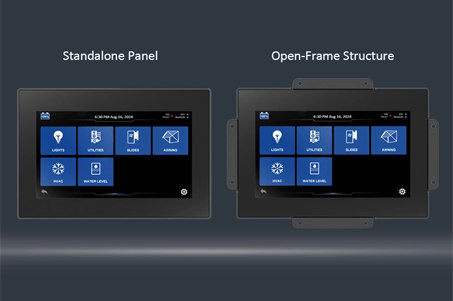

Custom Design Solutions Tailored to Your Needs

The HMI-70 Industrial Control Panel is engineered to adapt to a wide range of applications with its versatile design options. Choose the sleek standalone panel for fast, hassle-free integration into existing systems, ideal for businesses prioritizing quick deployment and operational efficiency. For more specialized needs, the open-frame structure offers unmatched flexibility, perfectly suited for custom installations in industrial machinery, vehicle dashboards, or IoT-enabled kiosks. This dual-design approach ensures the HMI-70 delivers a tailored solution for both standard and highly customized projects, empowering businesses to achieve their goals with precision and reliability.

7″ Industrial Control Panel | HMI-70
7″ Industrial Control Panel | HMI-70

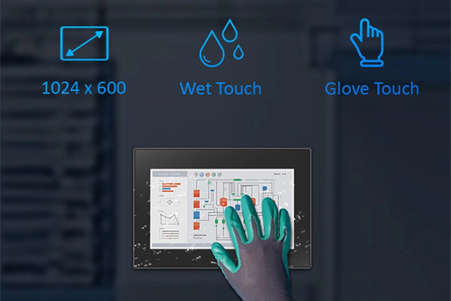

7-Inch Touchscreen HMI with Wet and Glove Touch Support

The HMI-70 Industrial Control Panel features a vibrant 7-inch capacitive multi-touch IPS display with a crisp 1024 x 600 resolution, delivering sharp visuals and smooth responsiveness. Designed for diverse industrial and IoT applications, its advanced touch technology supports wet and glove interactions, ensuring reliability in any environment. Perfect as a home control unit for saunas, lighting, and appliances, the HMI-70 also excels as a control panel for recreational vehicles, including RVs, ATVs, boats, and golf carts. With its adaptable design and intuitive interface, the HMI-70 brings precision and convenience to every application.

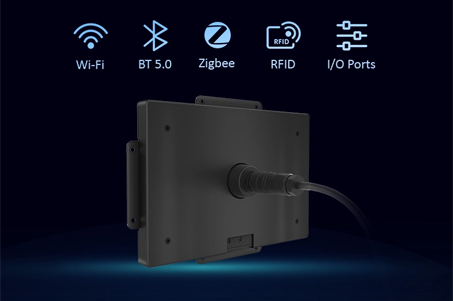

Comprehensive Connectivity for Effortless IoT Integration

The HMI-70 Industrial Control Panel offers robust connectivity options to power seamless IoT integration. Equipped with versatile I/O ports, including USB, RS232/485, and LAN, alongside advanced RF capabilities like dual-band Wi-Fi, Bluetooth 5.0, Zigbee, and RFID, the HMI-70 ensures compatibility with diverse systems. These features enable real-time data monitoring, precise device control, and efficient network communication, empowering businesses to optimize workflows and enhance operational efficiency in industrial and smart applications.

7″ Industrial Control Panel | HMI-70
7″ Industrial Control Panel | HMI-70

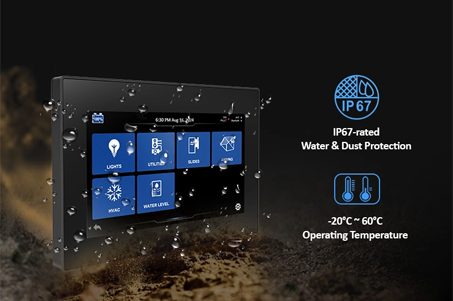

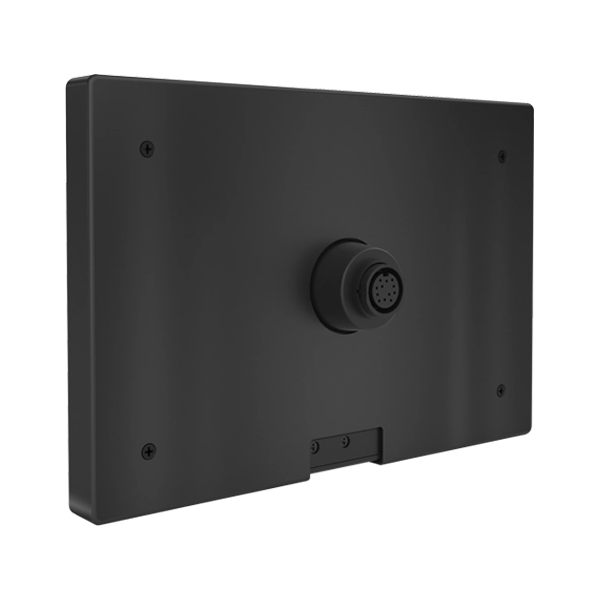

Built Tough for Harsh Environments

The HMI-70 Industrial Control Panel is engineered for reliability in the most demanding conditions. With an IP67 rating for water and dust protection and a wide operating temperature range of -20°C to 60°C, it thrives in challenging environments. Its rugged construction ensures durability for critical applications, from industrial control systems to outdoor automation in RVs, boats, and golf carts, as well as home appliances. Designed to deliver consistent performance no matter what the setting, the HMI-70 is the ultimate solution for robust and reliable operation.

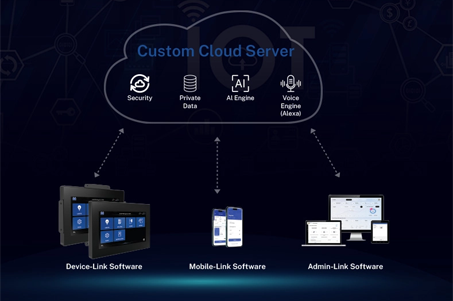

Optional Remote Device IoT Management

The HMI-70 offers an optional IoT management solution through seamless integration with a Custom Cloud Server, providing advanced features like data security, AI-driven automation, and compatibility with voice engines such as Alexa. Paired with our optional Device-Link, Mobile-Link, and Admin-Link software, businesses like you can benefit from real-time monitoring, OTA firmware updates, and centralized cloud-based management. This service enhances operational efficiency and simplifies connectivity, making it an ideal choice for industrial and IoT applications seeking smarter, streamlined control.

7″ Industrial Control Panel | HMI-70
7″ Industrial Control Panel | HMI-70

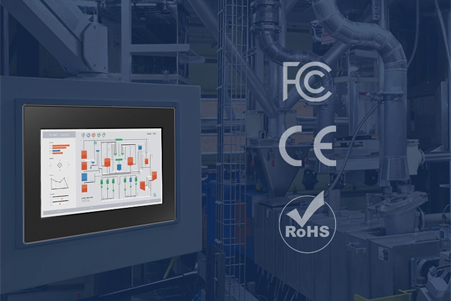

Globally Certified for Safety and Quality Assurance

The HMI-70 is fully certified to meet international standards, including FCC, CE, and RoHS, ensuring top-tier safety, quality, and environmental compliance. These certifications make it a reliable and trusted solution for industrial control panels and IoT applications, meeting the stringent requirements of global markets with confidence. Unlock the full potential of your industrial control and IoT projects with the advanced capabilities of the HMI-70. From seamless integration to rugged performance, this solution is designed to meet your unique needs. Contact us now for a free consultation or personalized quote and take the first step toward elevating your operations!

SPECIFICATIONS

RUGGEDNESS

IP Rating
IP67 Water & Dust Protection
Wide Temperature
0°C to 50°C
Optional: -20°C to 60°C

SYSTEM

Processor
Quad-core Cortex-A55, up to 2.0GHz
Memory
4GB LPDDR4
Storage
16GB eMMC
Optional: 32GB/64GB/128GB
OS
Android 14 or Linux

DISPLAY

Screen Size
7" IPS LCD
Optional: 10" or 15"
Resolution
1024 x 600
Brightness
400 nits
Touch Screen
Capacitive 5-point Touch, Supports Wet & Glove Modes

COMMUNICATIONS

Wi-Fi
802.11 a/b/g/n/ac/ax
Bluetooth
Bluetooth v5.0
RF (Option)
Zigbee, RFID

I/O  & SENSOR

Sensors
Temperature, Ambient Light Sensor
I/O Options
USB 2.0 RS232/485 LAN
DC Input
12V, 3A
Button
Power Button Vol +/- Button

MECHANICAL

Dimensions
191.9 x 129.9 x 14.6 mm
Chassis Options
280 x 256 x 23mm

POWER

AC Adapter
Input AC 100-240V, 50/60Hz Output DC 12V/3A

ENVIRONMENTAL

Operating Temperature
0°C to 50°C
Optional:  -20°C to 60°C
Storage Temperature
-20°C to 70°C

REGULATORY

Certification
FCC, CE, RoHS, IC
