Highlights

The EN-150 is a high-performance 15.6" AI-enabled tablet PC designed for advanced medical imaging and portable endoscopy applications. Powered by integrated FPGA and NPU AI modules, the EN-150 provides real-time image processing, analysis, and visualization for a wide range of medical applications. The custom option includes Xilinx FPGA as video imaging processor for single use endoscopes and can be used for gastroenterology, pulmonology, urology, gynecology, and ENT. It is ideal for hospitals, ambulatory services, small clinics, and emergency response environments. Its compact form factor and durable design ensure reliable operation in both stationary and on-the-go medical settings.

Features

  • 15.6" Full HD 1920 x1080 Touchscreen
  • ARM processor + FPGA/NPU architecture
  • ARM Cortex A76 Processor 2.4GHz with 8-cores for fast applications
  • Linux OS Ubuntu/Debian
  • Optimize for medical imaging (up to 4K) and AI processing
  • Custom ports for different endoscopes and imaging sensors
  • Low-latency video image transmission
  • Customizable OSD and View Mode
  • Large 94Wh Battery to support long service Time
  • Rotatable Kickstand Handle Combo
EN-150 Datasheet
Pricing Based on MOQ
delivery
in 2 ~ 4 week
DESCRIPTION
DESCRIPTION
15.6 inch AI Tablet for Endoscopy & Medical Imaging | EN-150

Ultra-Fast FPGA-Powered Imaging for Real-Time Endoscopy

Powered by a high-performance Xilinx FPGA, the EN-150 Portable Endoscopy System delivers real-time, low-latency video processing, ensuring crisp, high-resolution imaging for endoscopic procedures. Its advanced image processing algorithms - including scaling up to 1920 x 1080, noise reduction, edge enhancement, and gamma/DICOM calibration – enhance image clarity and contrast, allowing for precise diagnostics and improved procedural accuracy.

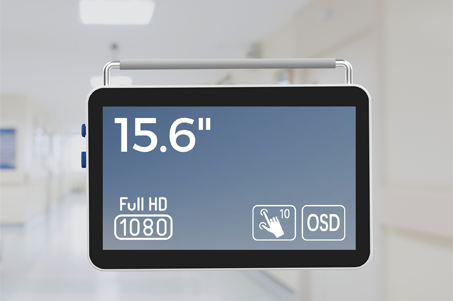

15.6" Full HD Touchscreen – High-Resolution Clarity & Precision

The EN-150 features a 15.6-inch Full HD (1920 x 1080) capacitive touchscreen, designed for sharp, high-contrast medical imaging. The hardened glass panel and 350-nit brightness provide exceptional durability and visibility, even in high-brightness or operating room conditions. Its intuitive OSD menu allows users to fine-tune brightness, contrast, RGB gain, sharpness, noise reduction, and zoom, ensuring optimal image quality for diverse clinical applications.

15.6 inch AI Tablet for Endoscopy & Medical Imaging | EN-150
15.6 inch AI Tablet for Endoscopy & Medical Imaging | EN-150

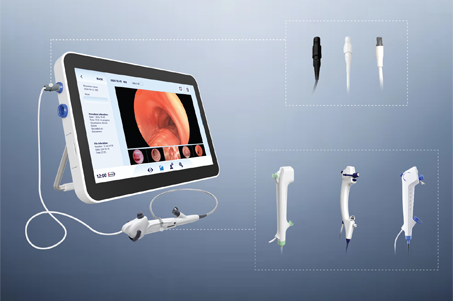

Customizable for Varies Endoscopes

EN-150 IO ports can be customized and support a broad range of endoscope and handles, accommodating resolutions from 400 x 400 up to 1920 x 1080. It is ideal for hospitals, ambulances, field hospitals, and emergency medical teams. Its low-latency image transmission via 3G-SDI and HDMI ensures real-time viewing without lag, improving workflow efficiency in critical procedures.

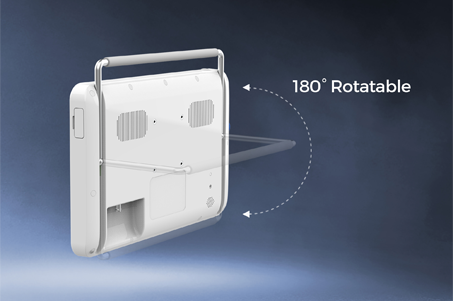

Adaptable Kickstand Handle for Mobile & Stationary Use

Designed for maximum portability and adaptability, the 180° rotatable kickstand enables multi-mode usability. It functions as a handle for handheld operation or as a stable stand for fixed procedures, making the EN-150 a reliable choice for operating rooms, emergency response teams, and mobile healthcare units. Its VESA mount compatibility allows for seamless integration into existing hospital setups.

15.6 inch AI Tablet for Endoscopy & Medical Imaging | EN-150
15.6 inch AI Tablet for Endoscopy & Medical Imaging | EN-150

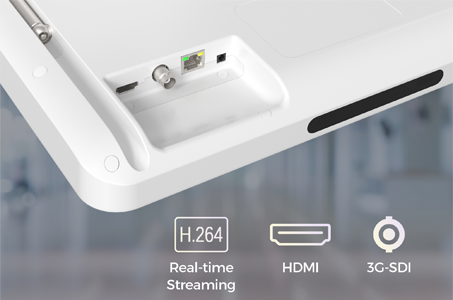

Seamless PACS & DICOM Integration for Efficient Workflow

The EN-150 fully supports DICOM file storage and PACS integration, ensuring seamless interoperability with hospital networks. With real-time H.264 streaming, HDMI output, and 3G-SDI connectivity, it allows for efficient data sharing, documentation, and remote consultation, enhancing collaboration between medical professionals.

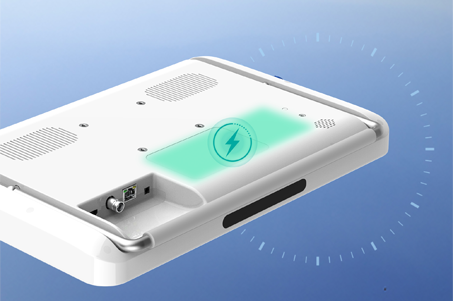

Long-Lasting Battery & Advanced Connectivity for Mobile Healthcare

Equipped with a high-capacity 93.6Wh lithium-ion battery, the EN-150 delivers up to 5 hours of continuous operation, making it perfect for portable, field, and emergency use. Its dual-band Wi-Fi (2.4G/5G), Bluetooth 5.2, USB 3.0, HDMI, 3G-SDI, and Gigabit Ethernet ensure seamless data transfer, real-time collaboration, and reliable connectivity in modern medical environments.

15.6 inch AI Tablet for Endoscopy & Medical Imaging | EN-150
15.6 inch AI Tablet for Endoscopy & Medical Imaging | EN-150

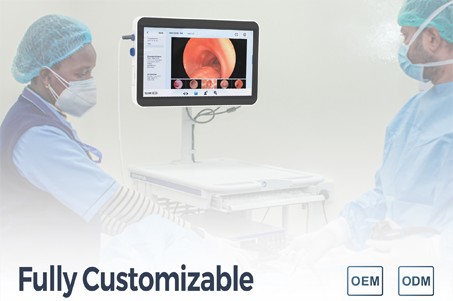

Fully Customizable Endoscopy System for Tailored Medical Applications

The EN-150 Portable Endoscopy System offers extensive customization options, ensuring seamless integration into hospitals, surgical centers, mobile medical units, and OEM solutions. As a leading ODM provider, we specialize in tailoring hardware configurations, optimizing software features, and customizing I/O interfaces to support various endoscope models and clinical workflows. The Linux-based operating system enables custom firmware development, UI modifications, and workflow automation, allowing for adaptable and efficient medical imaging solutions. Additionally, its versatile mounting options, rotatable kickstand, and multiple connectivity interfaces (HDMI, 3G-SDI, USB, Ethernet, Wi-Fi, and Bluetooth) provide exceptional flexibility across different medical environments. With PACS & DICOM integration, real-time H.264 streaming, and low-latency image transmission, the EN-150 enhances diagnostic precision, seamless data sharing, and interoperability, making it a scalable, high-performance medical imaging solution fully customizable to your exact specifications.

SPECIFICATIONS

SYSTEM

Processor
Quad-core ARM Cortex-A76 (2.4GHz) + Quad-core ARM Cortex-A55 (1.8GHz) Processors
VPU
High-performance Xilinx Zyng-7015 FPGA
Memory
4GB LPDDR4 RAM
Storage
64GB eMMC Storage

DISPLAY

Screen Size
15.6" Full HD LCD Display
Resolution
1920 x 1080
Brightness
350-nit Brightness with LED Backlight
Touchscreen
Capacitive 10-Point Multi-Touch High-strength Hardened Glass
Image Sensors
OV6946 (400 x 400), OV6948 (200 x 200), OV9734 (1280 x 800), OH01A (400 x 400), OV2740 (1920 x1080), OC0SA10 (400 x 400), OCHTA10 (400 x 400), OCHFA10 (400 x 400), OCH02B10 (400 x 400)

COMMUNICATIONS

Ethernet
1 x RJ45 10/100/1000M
Wi-Fi
Dual-band IEEE 802.11 a/b/g/n/ac (2.4GHz & 5GHz)
Bluetooth
Bluetooth 5.2

I/O INTERFACE

Audio
1 x Speaker, 8Ω/2W 1 x Microphone
Ports
2 x Endoscope Connectors 2 x USB 3.0 Type A 2 x HDMI Output 1 x 3G-SDl Output 1 x DC Power Input
Button
Power On/Off
Optional On-screen Buttons

MECHANICAL

Dimensions
391 x 255 x 37.5 mm
Kickstand
180-degree Rotatable Kickstand
Mounting
VESA 100 x 100 mm Mounting Compatibility

POWER

AC Adapter
100-240V AC input, 1.0-2.0A, 50-60Hz 19V, 3.43A DC Output
Battery
14.4V, 6500 mAh, 93.6 Wh Lithium-ion Battery

ENVIRONMENTAL

Operating Temperature
0°C to 45°C
Storage Temperature
-20°C to 65°C
Humidity
30% to 85% (Non-condensing)
Atmospheric Pressure
80-106kPa
Altitude
≤ 2000 m
