Slim Yet Tough: How the MW-100 Tablet Survives the Harsh Warehouse Environments

As parcel and warehouse operations accelerate automation, mobile computing devices must balance durability connectivity, and manageability. This article outlines how Estone’s MW-100 rugged tablet enables reliable, high-throughput workflows across receiving, picking, cross-dock, and last mile environments, combining industrial-grade resilience with modern Windows-based manageability.

Why the MW-100 matters for parcel and warehouse operations

Operators are under constant pressure to increase throughput, reduce screening errors, and keep equipment uptime high while working in harsh environments like yards, docks, cold storage, and outdoor transfer points. To address this, the MW-100 is explicitly designed to close the gap between consumer tablets and heavyweight purpose-build devices that are bulky or overly expensive. The tablet brings a set of operational benefits that include:

• Rugged hardware that survives drops, dust and water, and intensive daily handling.
• A slim 10.5″ sunlight-readable display that reduces rework and speeds up operator tasks in yards and bright dock doors.
• Sufficient compute, connectivity and I/O to run modern Windows/IoT WMS (Warehouse Management System) clients, browser-based dashboards and local scanning SDKs.

In case you want to learn more about the technical characteristics of MW-100 such as screen-size, connectivity or other specifications check out the product page and catalogue: Click here to read

What makes MW-100 valuable for logistic and warehouse operations

Below are the technical features that materially change operational outcomes on the warehouse floor, and the reasoning that ties a spec to concrete benefits or constraints.

Display and camera: outdoor, dock and OCR workflows

The MW-100’s 600‑nit, 10.5″ panel significantly reduces errors caused by glare for personnel working near dock doors and in partially shaded outdoor locations. For proof‑of‑delivery (POD) and automated label capture, a 13 MP auto‑focus rear camera combined with controlled lighting and an OCR pipeline reduces failed reads on low‑quality stickers and damaged labels. For label OCR workflows, we recommend using consistent short‑throw LED illumination on carts or pack stations and process images through a tuned OCR engine capture both barcode and full‑label image to improve matching.

Wi‑Fi 6E & Bluetooth: density and latency

Wi‑Fi 6E (AX210) brings 6 GHz band capacity and wider channels. In high‑density sortation halls and busy distribution centres this translates to lower AP contention and better uplink throughput when the WLAN is engineered for 6 GHz. Some practical notes:

• Treat 6 GHz as capacity expansion: do not assume universal client/driver support; plan for 2.4 GHz and 5 GHz fallback.
• Verify enterprise AP support for tri‑band operation and configure controller‑based band steering with explicit 6 GHz planning.
• Use a site survey tool that supports 6 GHz channels when planning AP placement and power levels.

If the site cannot support wide 6 GHz deployment, the MW‑100 will still operate on 5 GHz and 2.4 GHz; the presence of 6E hardware is future‑proofing for next‑generation high‑density deployments.

Ruggedness: IP66 & MIL‑STD implications

The IP66 protects against dust ingress and high‑pressure water jets, meaning it’s suitable for dusty sort rooms and occasional washdowns. The MIL‑STD‑810H ratings reduce unplanned replacements from drops and mechanical shock. Below are some operational caveats:

• IP66 is not immersion protection; do NOT use immersion tests in acceptance.
• Routine holsters, hand‑straps and dock padding still materially extend life expectancy despite the rugged rating.
• For freezer/cold‑chain below −10 °C, select a heated enclosure or a cold‑rated device; the MW‑100 is rated for operation down to −10 °C.

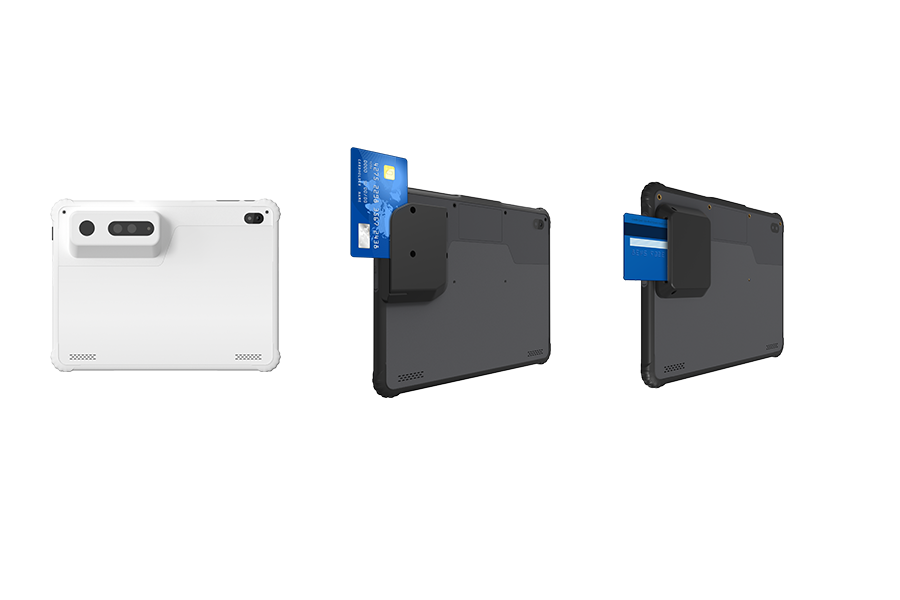

Modular expansion: pogo modules, scanner and LTE

The pogo‑pin expansion for RFID and high‑precision GPS, plus optional built‑in 2D scanner and optional LTE, allow a fleet‑wide single SKU approach. That reduces driver imaging differences, simplifies MDM policies and minimizes device inventory variance across operations. Choose modules at procurement time to avoid later driver and firmware integration challenges.

How MW-100 fits in high-value logistics use cases

Here are some of the best use cases for the slim MW-100 in logistics:

Receiving & Goods‑in:

The MW-100 can be used as the primary scan-and-capture terminal for inbound trucks; an example flow is: arrive, scan pallet/labels, capture proof‑of‑delivery photos, attach in WMS.  The Sunlight readable display and camera make document/photo capture reliable at dock doors and in bright yards.

Put‑away & Directed Storage:

The large screen improves map/slot visibility for zone-based put‑away apps and reduces wrong‑put errors. The Optional barcode/RFID modules let you choose scan-only or RFID-assisted put-away depending on SKU density.

Pick‑by‑Application (Batch / Wave / Zone):

The MW‑100 is ideal for cart-based or trolley workflows where a larger readable display speeds picking and QA. The MW-100 can be paired with pistol grip scanner accessory for single‑handed scanning.

Packing & Shipment Verification:

Camera-based proof-of-pack, PDF generation and instant printing to a nearby label printer (via Wi‑Fi) streamline packing checks and returns processing.

Sortation & Yard Management:

The IP66 and MIL‑STD ruggedness let the MW‑100 live on the sortation floor or yard, surviving weather exposure and handling. The Optional LTE ensures connectivity in outdoor staging areas where Wi‑Fi is intermittent.

Last-mile / Delivery Handover (Courier Apps):

The tablet supports proof-of delivery workflows by enabling signature capture, photo documnetation, and multi-language UI on a spacious display.

The Estone MW-100 brings enterprise-grade performance to logistics and parcel environments that demand both resilience and flexibility. Its modular design, modern connectivity, and secure Windows platform ensure reliable performance from receiving to last-mile delivery. By standardizing on a single, rugged device architecture, organizations can reduce hardware fragmentation, and sustain high operational uptime across the supply chain.
